Model |
RT98 |
RT95 |
RT90 |
RT-9000D |
|
Mode |
Analog |
Analog |
DMR Digital & Analog |
Analog |
|
Frequency |
VHF:136-174MHz or |
EU version: VHF :144-146MHz & UHF:430~440MHz or US version VHF:144-148MHz & UHF: 430~440MHz |
VHF: 136-174Mhz & UHF:400-480Mhz |
UHF:400-490MHz or VHF:220-260Mhz or VHF:136-174Mhz or VHF: 66-88MHz |
|
Band |
Single Band |
Dual Band |
Dual Band |
Single Band |
|
Output Power |
15W/10W/ 5W |
25W / 15W / 5W |
VHF:L:25W /H:50W; UHF: |
UHF(45W/25W/10W) or VHF(60W/25W/10W) |
|
Channels |
199 |
200 |
3000 |
200 |
|
Rated Voltage |
13.8V DC ±15% |
13.8V DC ±15% |
13.8V DC ±15% |
13.8V DC±15% |
|
Antenna Connector |
SL16-J |
SL16-J |
SL16-J |
SL16-J |
|
Dimensions(WxHxD) |
100*24*106mm |
124*39*163mm |
143*50*175 mm |
145*47*90mm |
|
Weight |
434g |
640g |
1100g |
966g |
|
Frequency Stability |
±2.5ppm |
±2.5ppm |
±1.0ppm |
±2.5ppm |
|
Main features |
1:Cost-effectiv;
2:Mini Size and Lightweight; |
1:Dual Display /Dual Watch;
2:180 degree rotatable TFT LCD display; 4:DTMF/5 Tone /CTCSS/DCS Scan/Squelch; 5:VFO Numeric keyboard Programming and PC Programmin;
6:LCD brightless control 8:Can be extended to 136-174MHz and 400-490MHz |
1:Support Analog /Digitalmode ; 2:TDMA technology,AMBE++ vocoder, compatible with Mototrbo,
4:Single call, group call and all call; 8:SMS/Record/GPS(optional) |
1: 8 Group Scrambler; 2:DTMF/2 Tone/5 Tone; 3:Contact book;
4: Five definable keys; |

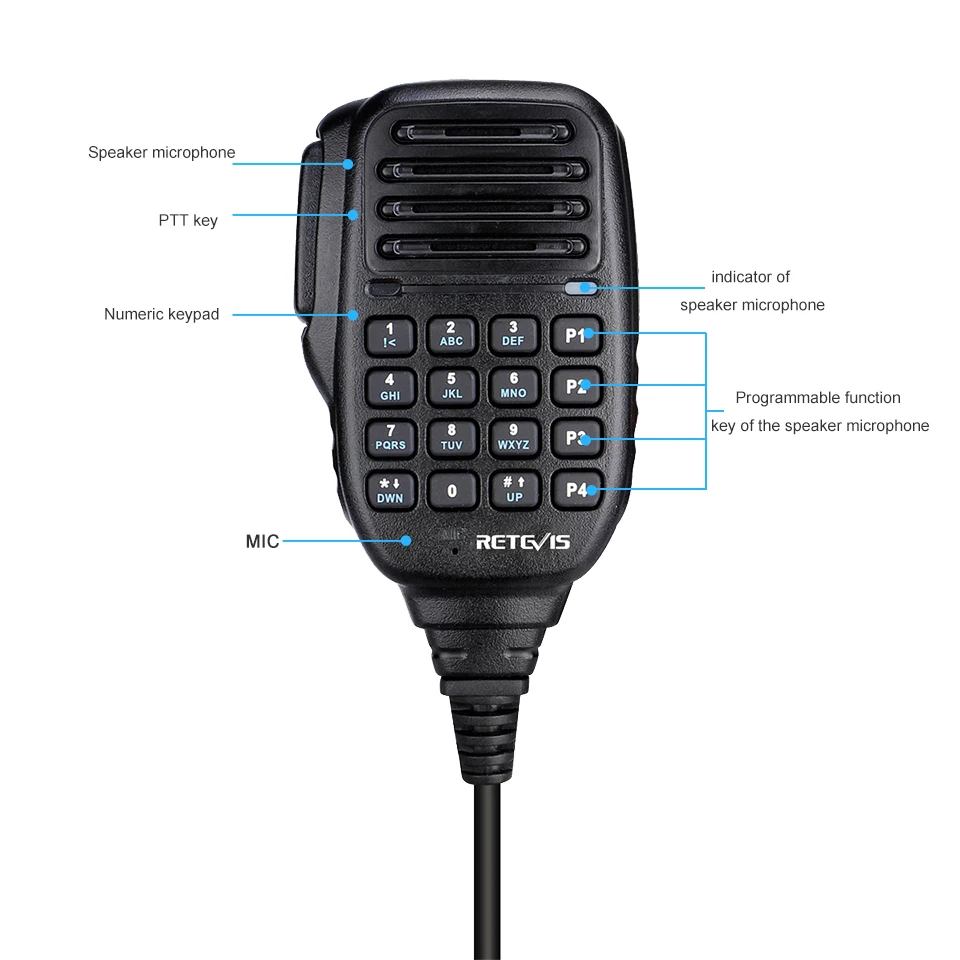

Pre-sale DMR Digital Mobile Radio Retevis RT73 Mini Digital Car Radio Station GPS UV Dual Band 20W TFT Screen with Hand Microphone + Cable
Hereby inform, attention please before order:
The 3th batch of RT73 has been sold out. Now the 4th batch is in pre-sale. Shipping time is estimated to be around 20th December ,so please extend delivery time to December 20th, and by another 6 days or so.(Calculated from 10th December) .
We will urge warehouse to finish delivery ASAP. Please wait patiently.Any doubt, please contact customer service.Sincere thanks for your understanding.
——RETEVIS Official Store.
Note:
1.The RT73 package includes a programming cable.
2.We bear the shipping fee.
3.Start to arrange shipment according to orders payment time when the 4th batch of RT73 stock arrives at warehouse around December 20th.

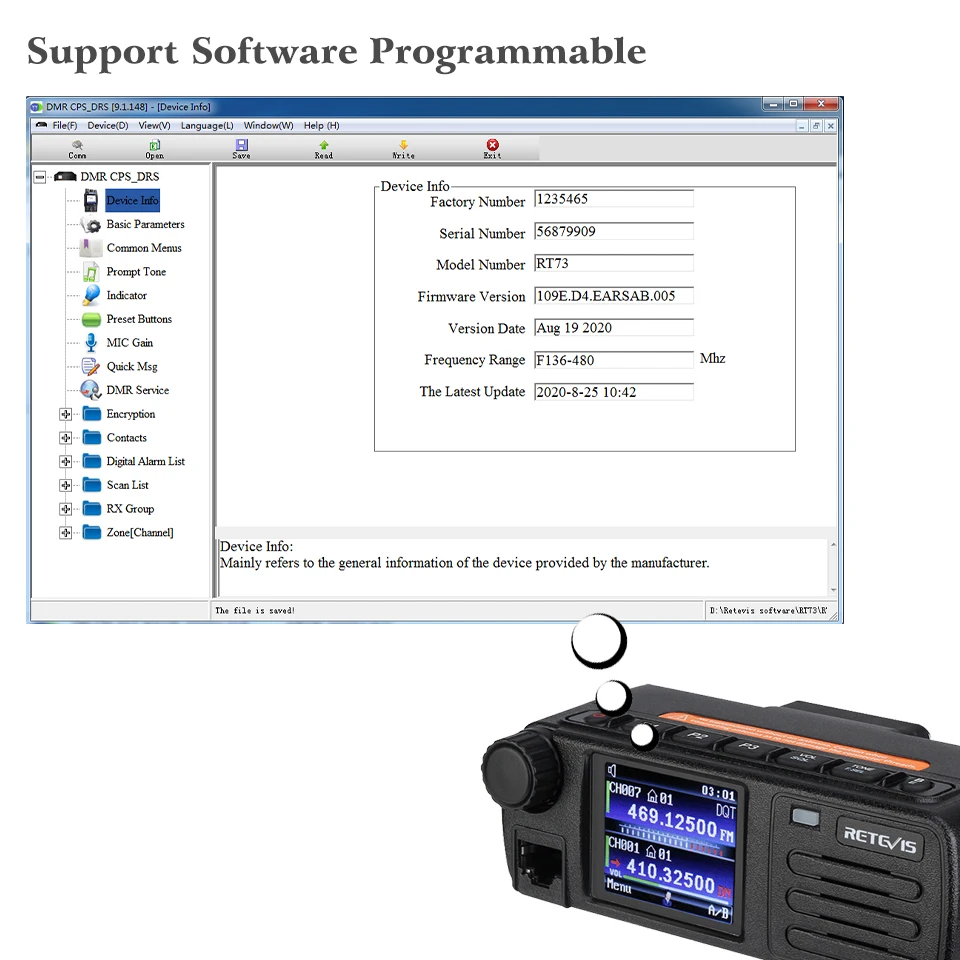

Download link for latest Programming software and Firmware for RT73:
//www.ailunce.com/Assets/software/Retevis-RT73-CPS-FW.zip
Link for 20,0000 contact file:
//www.ailunce.com/Assets/CSVFiles/20201218/1729063812/Retevis-RT73.zip

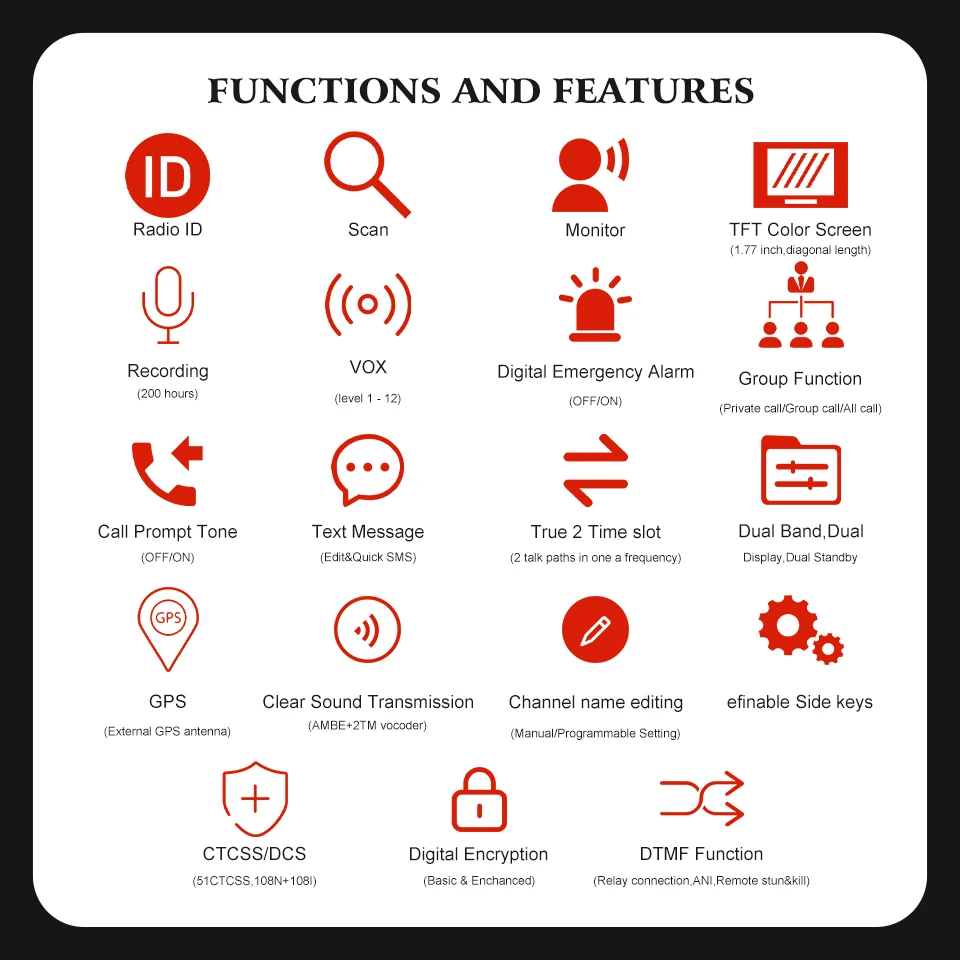

Feature：
·200,000+contacts (complete worldwide database from DMR-MARC).
·20,000 call groups.
·250 text messages.
·4000-channel (250CH/Zone, 16 zones）

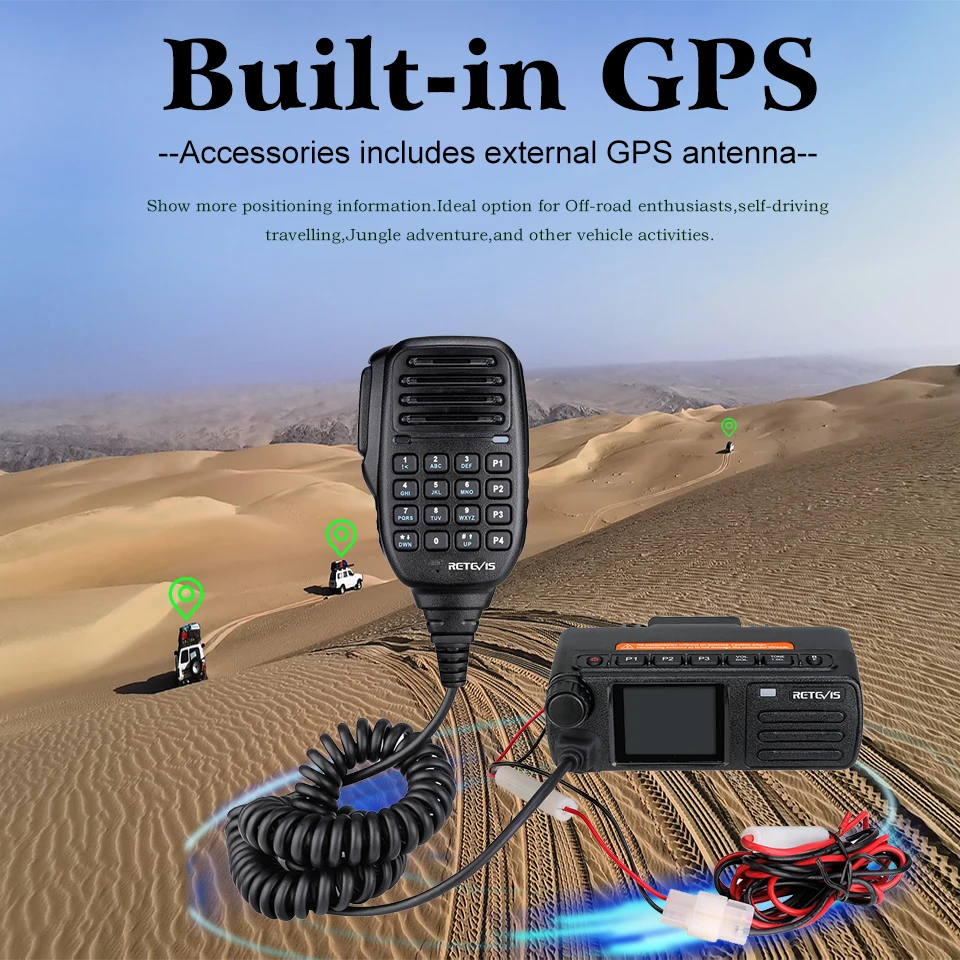

·Built-in GPS.
·True 2-time slot which allows for 2 talk paths one a frequency.

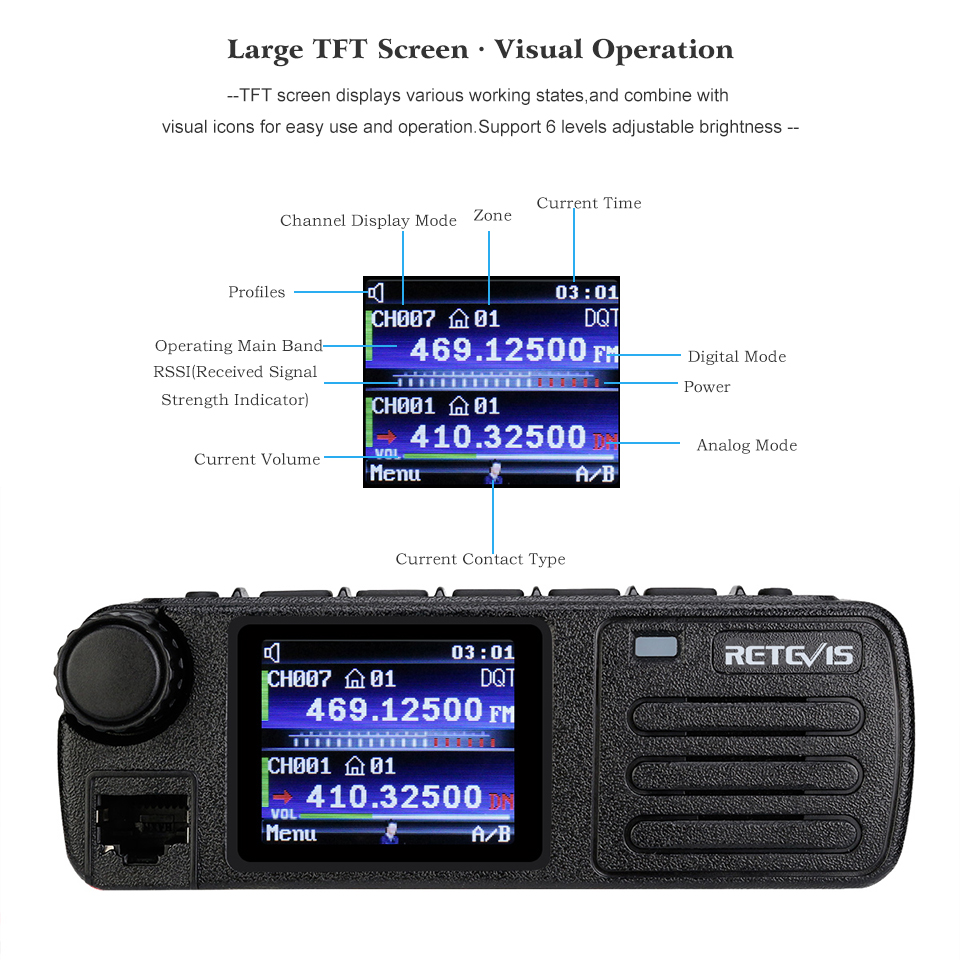

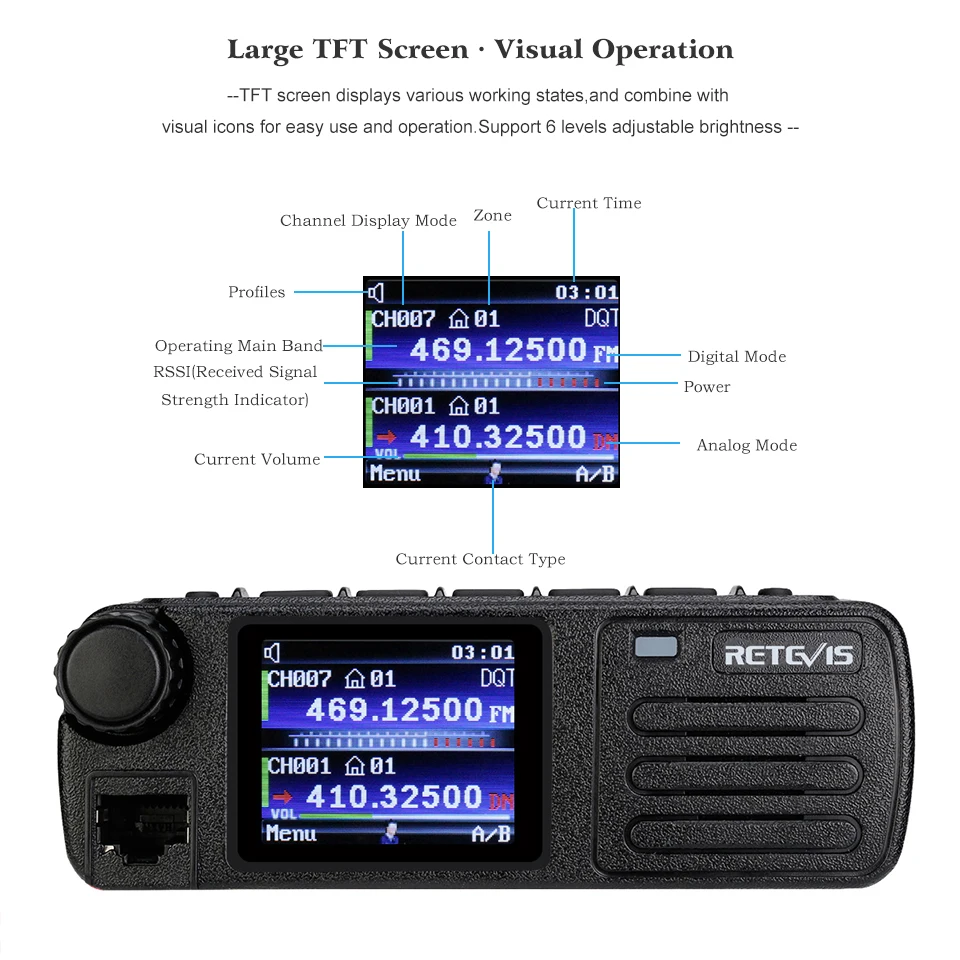

·Dual band, dual display and dual standby.

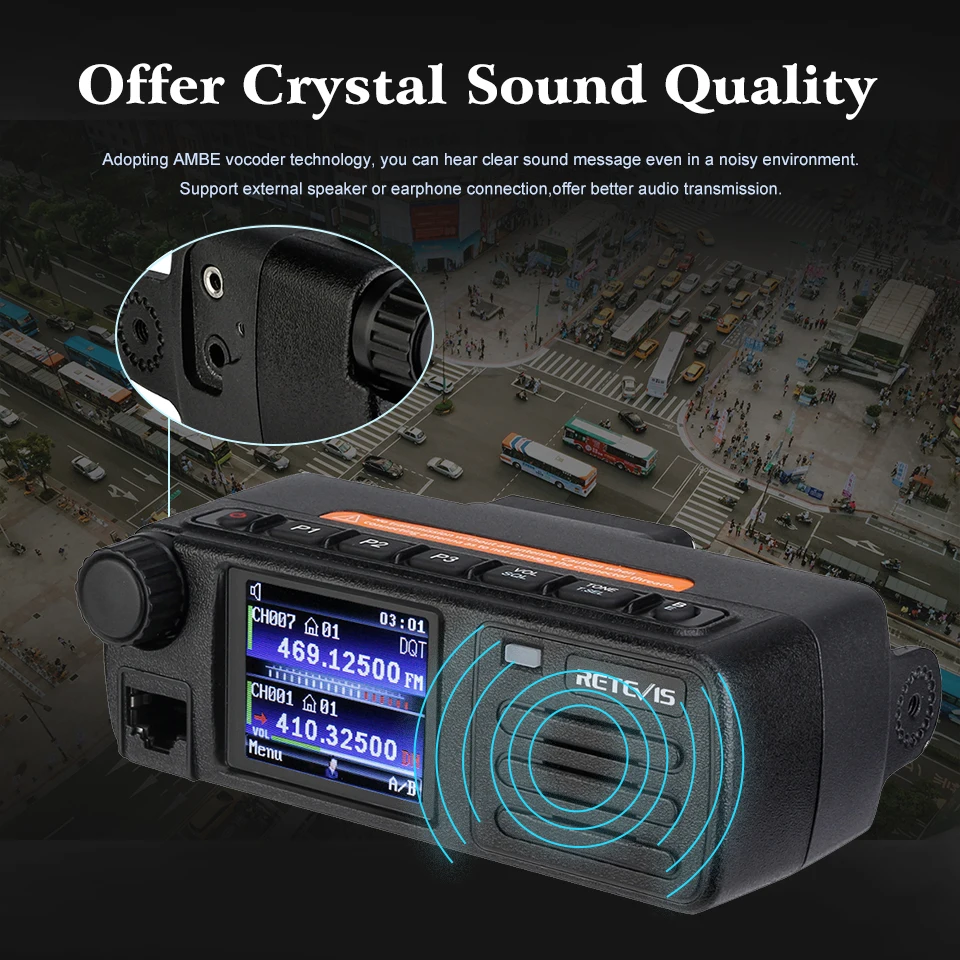

·AMBE vacoder, Crystal sound quality.

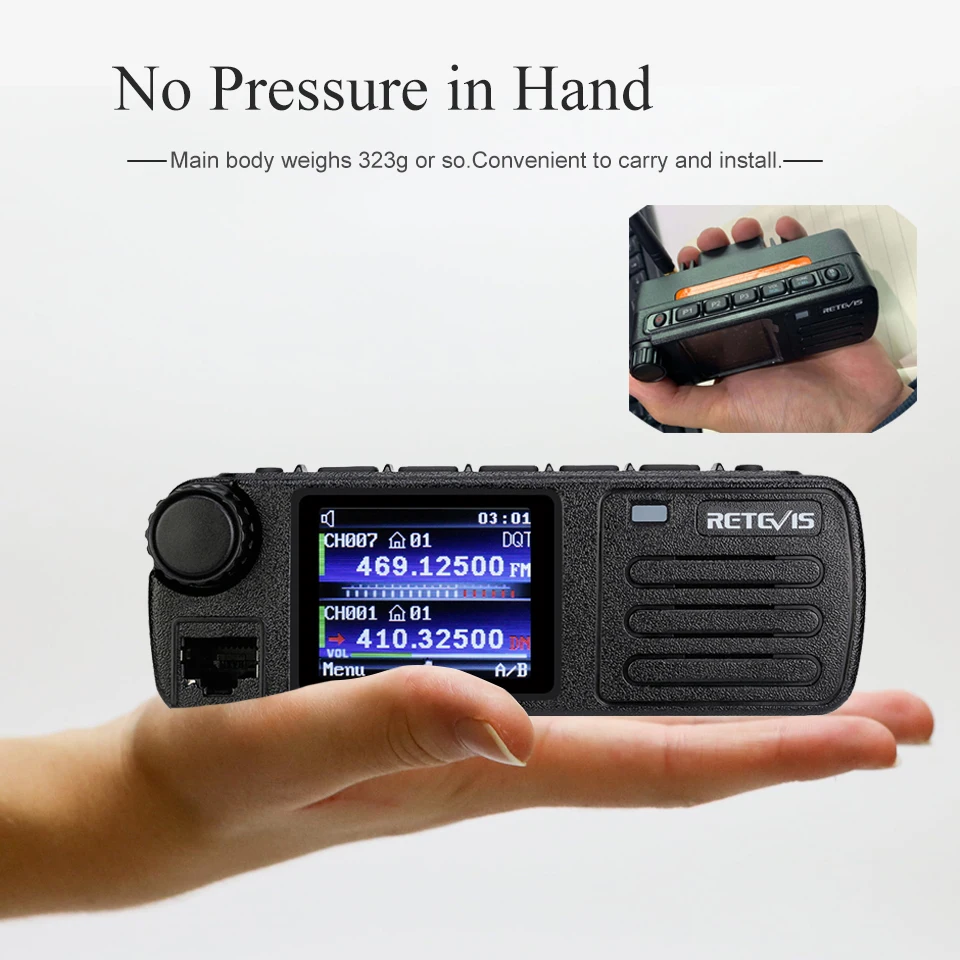

·Super small size, power up to 20W, be convenient for installation on any devices.

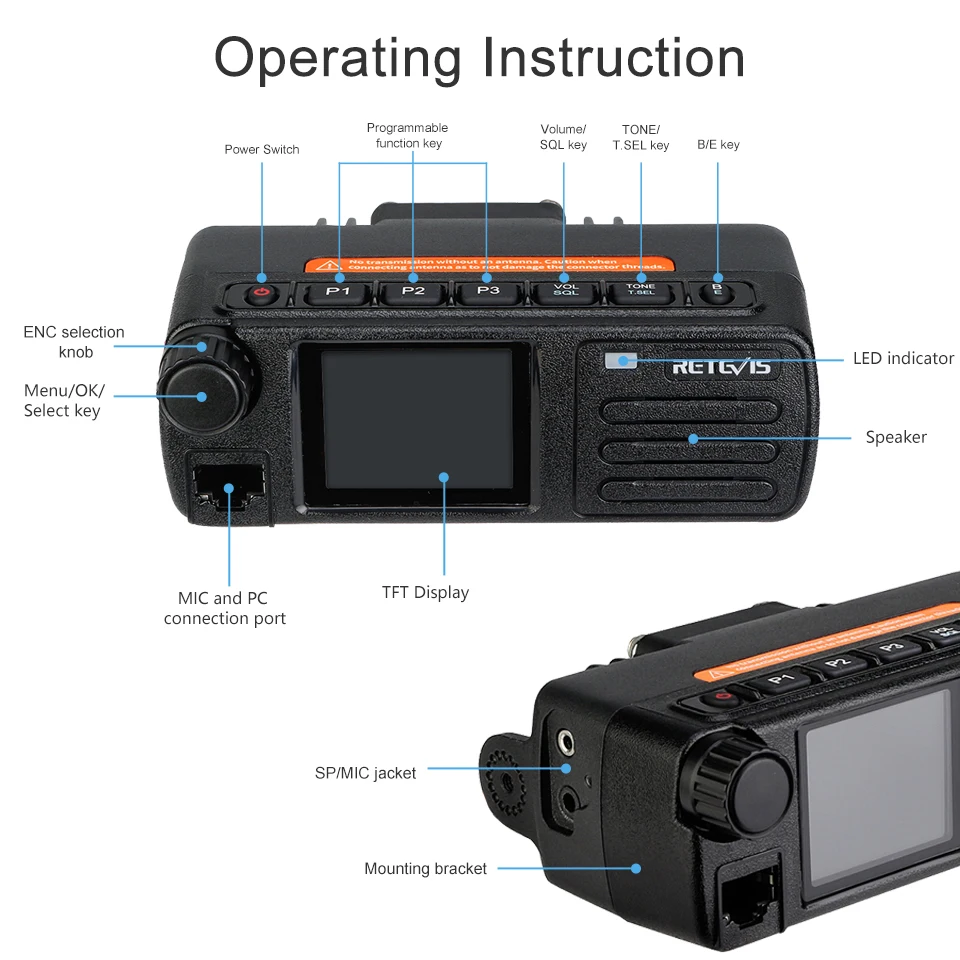

·Definable keys to ensure shortcut operation.

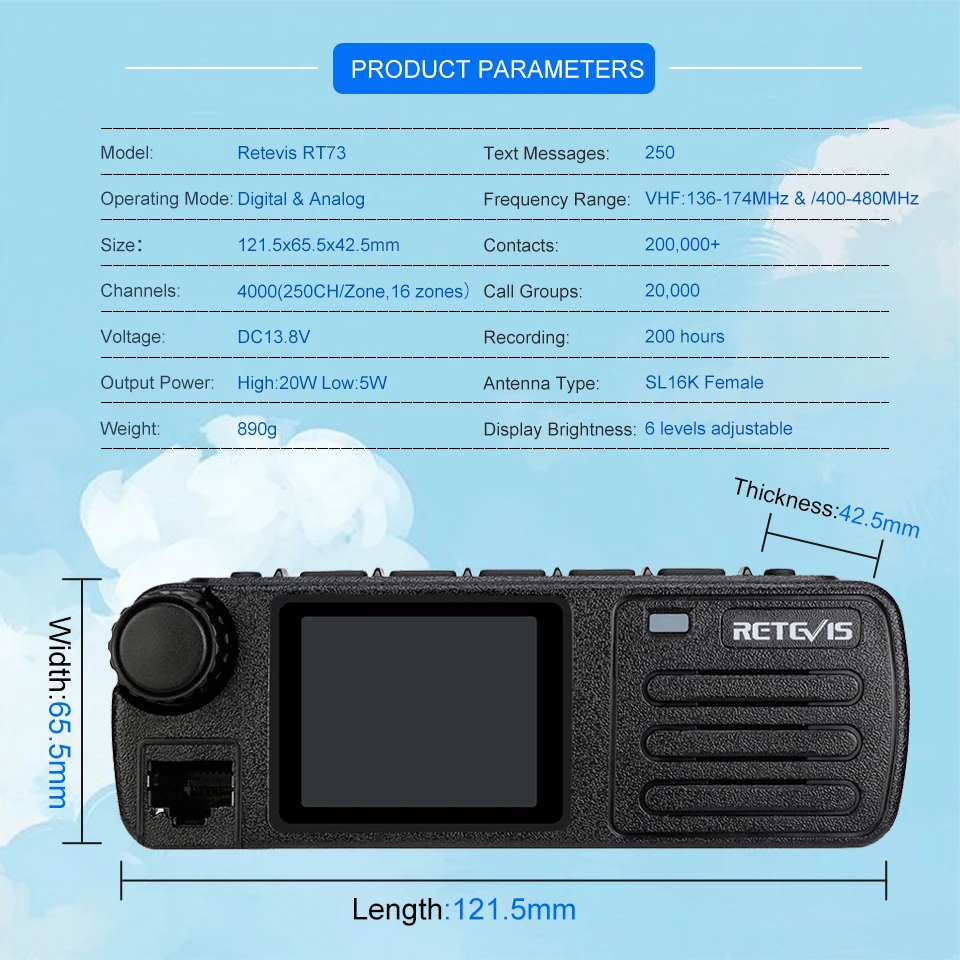

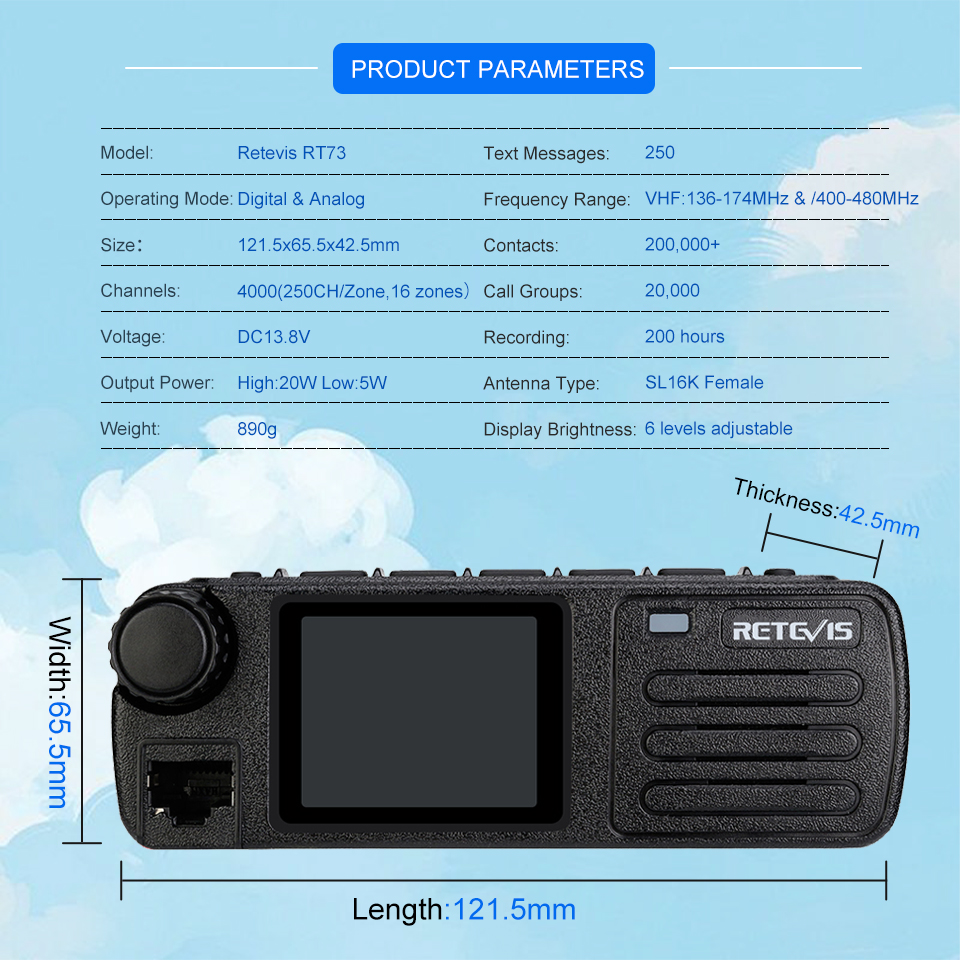

Technical Parameters:
|
General
|
|
|
Product number
|
RT73
|
|
Frequency range
|
UHF：400-480MHz
VHF：136-174MHz
|
|
Channel number
|
4000 (250 Channels / Zone)
|
|
Channel spacing
|
12.5KHz/25KHZ
|
|
Standby current
|
160mA
|
|
Operating temperature range
|
-20℃~+50℃
|
|
The antenna impedance
|
50Ω
|
|
Overall dimensions
|
121.5*65.5*42.5mm
|
|
Rated Voltage
|
DC-13.8V
|
|
Transmitter
|
|
|
Rf power
|
5-20W
|
|
Modulation restriction
|
±2.5dB@12.5kHz / ±5.0dB@25kHz
|
|
FM hum& noise
|
-40dB@12.5kHz / -45dB@25kHz
|
|
Conducted/radiated emission
|
-36dBm＜1GHz / -30dBm＞1GHz
|
|
Adjacent channel selectivity
|
-60dB@12.5kHz / -65dB@25kHz
|
|
Audio Response
|
+1~-3dB
|
|
Audio Distortion
|
3%
|
|
Emission current
|
3A
|
|
RECEIVER
|
|
|
Frequency stability
|
+/-1.5ppm
|
|
Analogue sensitivity
|
0.3μV / 0.25μV
|
|
Digital sensitivity(5% BER)
|
0.25μV / 0.2μV
|
|
Intermodulation
|
65dB
|
|
Adjacent channel selectivity
|
60dB@12.5kHz / 65dB@25kHz
|
|
Spurious rejection
|
65dB
|
|
Rated audio
|
500mw
|
|
FM hum &noise
|
-40dB@12.5kHz / -45dB@25kHz
|
|
Audio response
|
+1~-3dB
|
|
Receive current
|
350-460mA
|

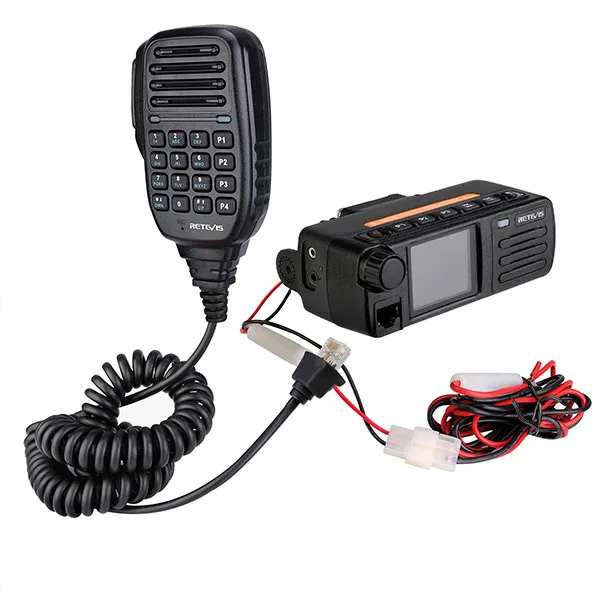

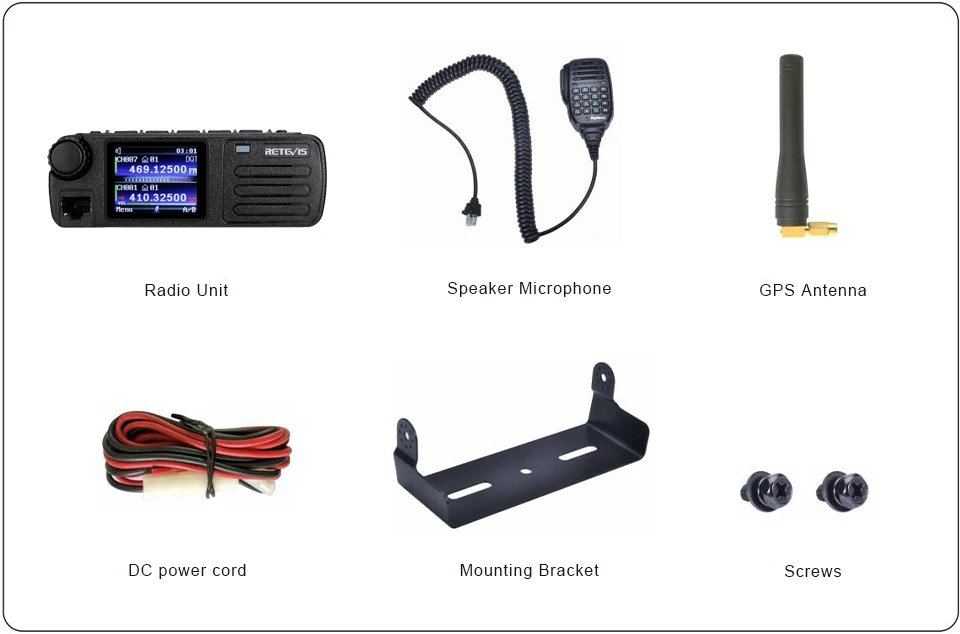

Package includes：
Introduction to RT73 DMR Digital Car Mobile Radio

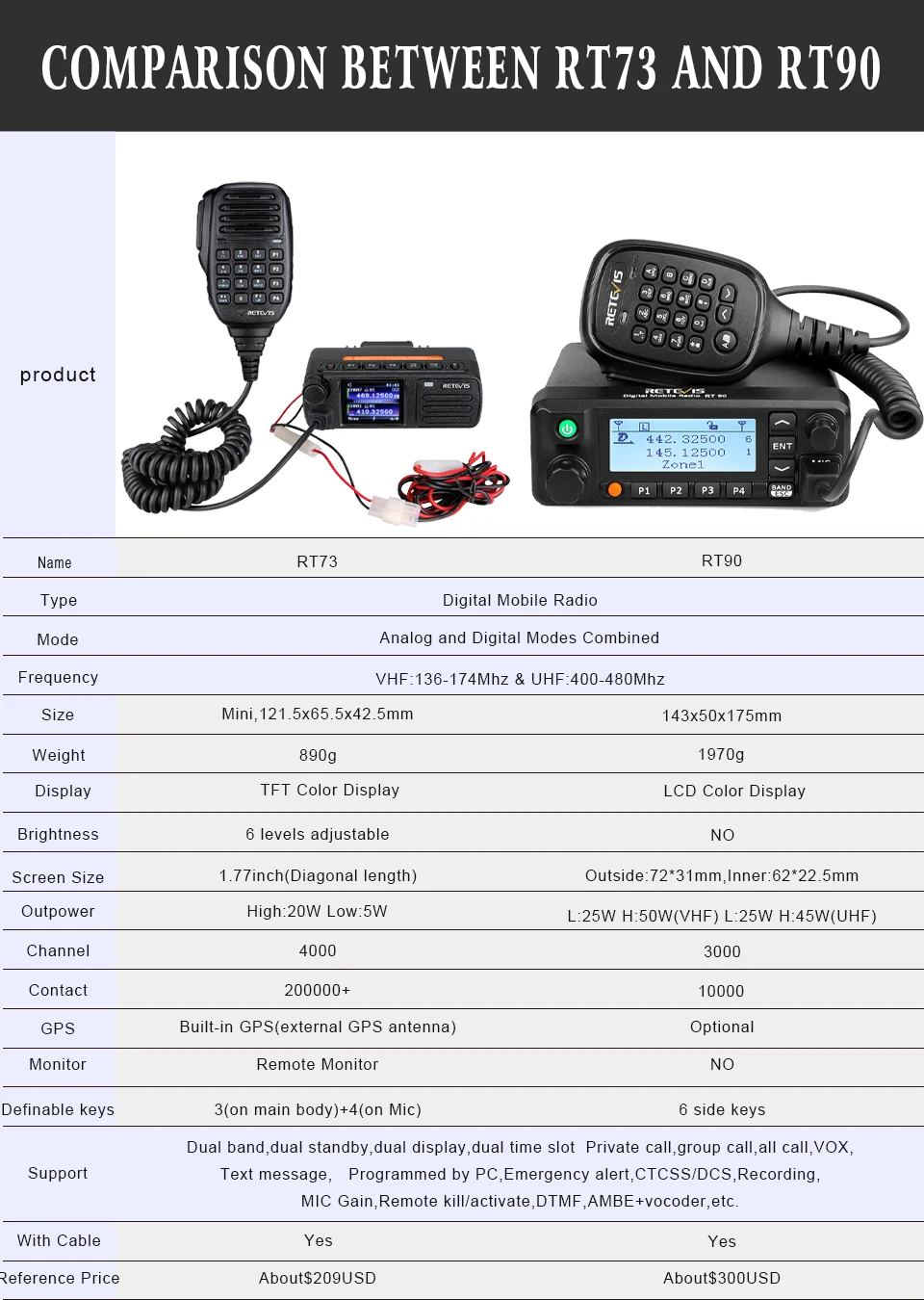

RT73 is new model of DMR digital car walkie talkie.Compared with RT90, similar functions,but the size of RT73 is more small,convenient,and cost-effective,best option for vehicle radio communication hams,suitable for car race,taxi,trucker,offroader,self-driving tour,community patrol,vehicle distribution,etc. Know more about it from here.↓
FAQ:
1. Q: Could RT73 upgrade firmware?
A: Yes, please watch demonstration video at the top,any question,please contact us.
2. Q: How to download programming software and the latest firmware?
A: Click these link to download:
