Order now get a gift

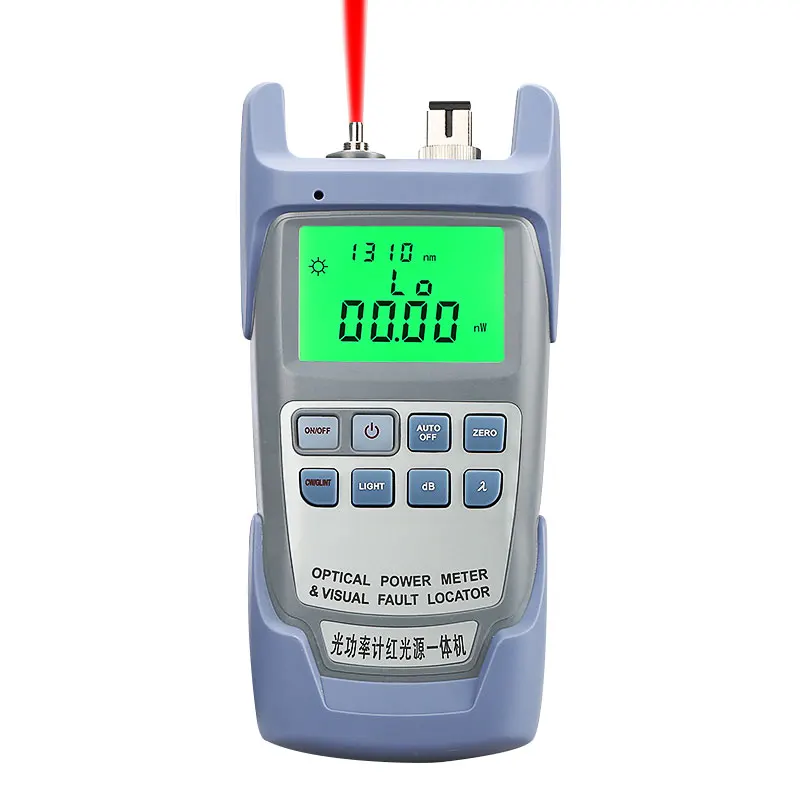

Order now will get a free power meter with vfl as gift!!!!
Our engineers can customize the software language for you: English, Spanish, Portuguese, French, Russian, Japanese, Korean, German, Italian. If you need this kind of service, please leave the software language you want in the order and we will do it for you. Note: This service is free.
Specification:

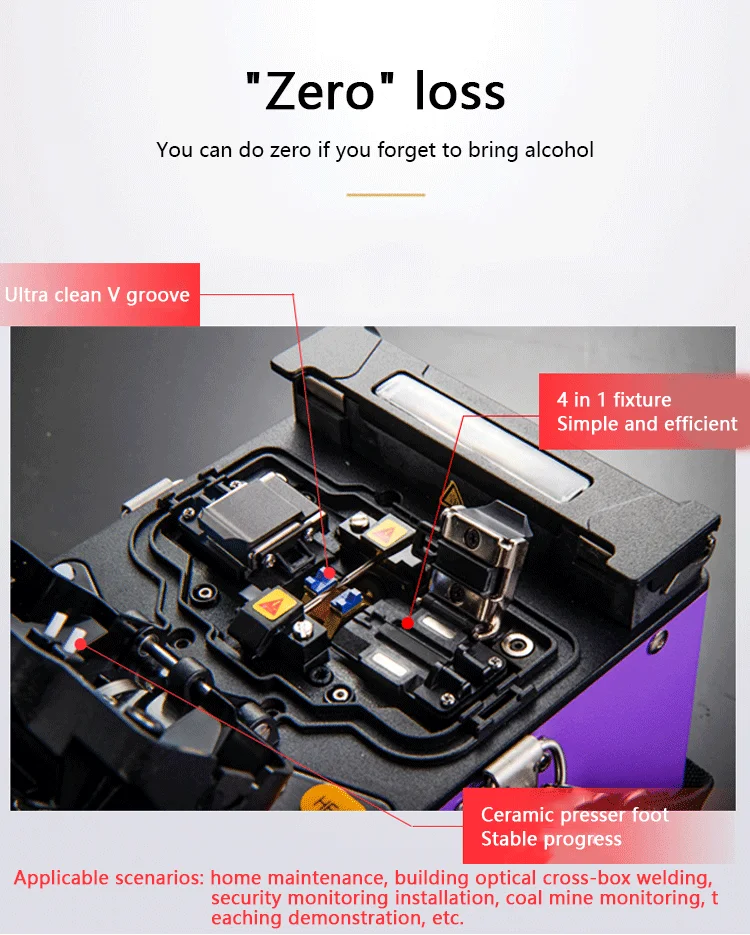

Alignment method:4 motors core to core alignment
Applicable fiber:SM(G.652),MM(G.651),DS(G.653),NZDS(G.655)
Cladding diameter:80~150μm
Coating diameter:160~1000μm
Cleaved length:5~16mm ( coating diameter < 250um), 16mm (coating diameter:250-1000um)
Typical splice loss:SM: 0.02dB;MM: 0.01dB;DS: 0.04dB;NZDS: 0.04dB
Return loss:>60dB
Splicing program:40 groups
Operation mode:Manual/ Automatic
Auto- heating:Available
Typical splice time:6 seconds

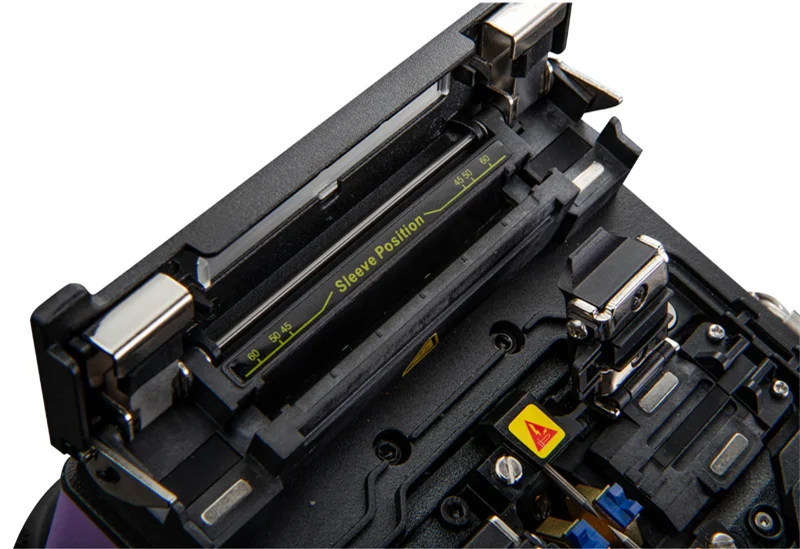

Typical heating time:26 seconds for 60mm and 40mm shrinkable sleeves
Fiber magnification:250X(X or Y view), 125X(X and Y view)

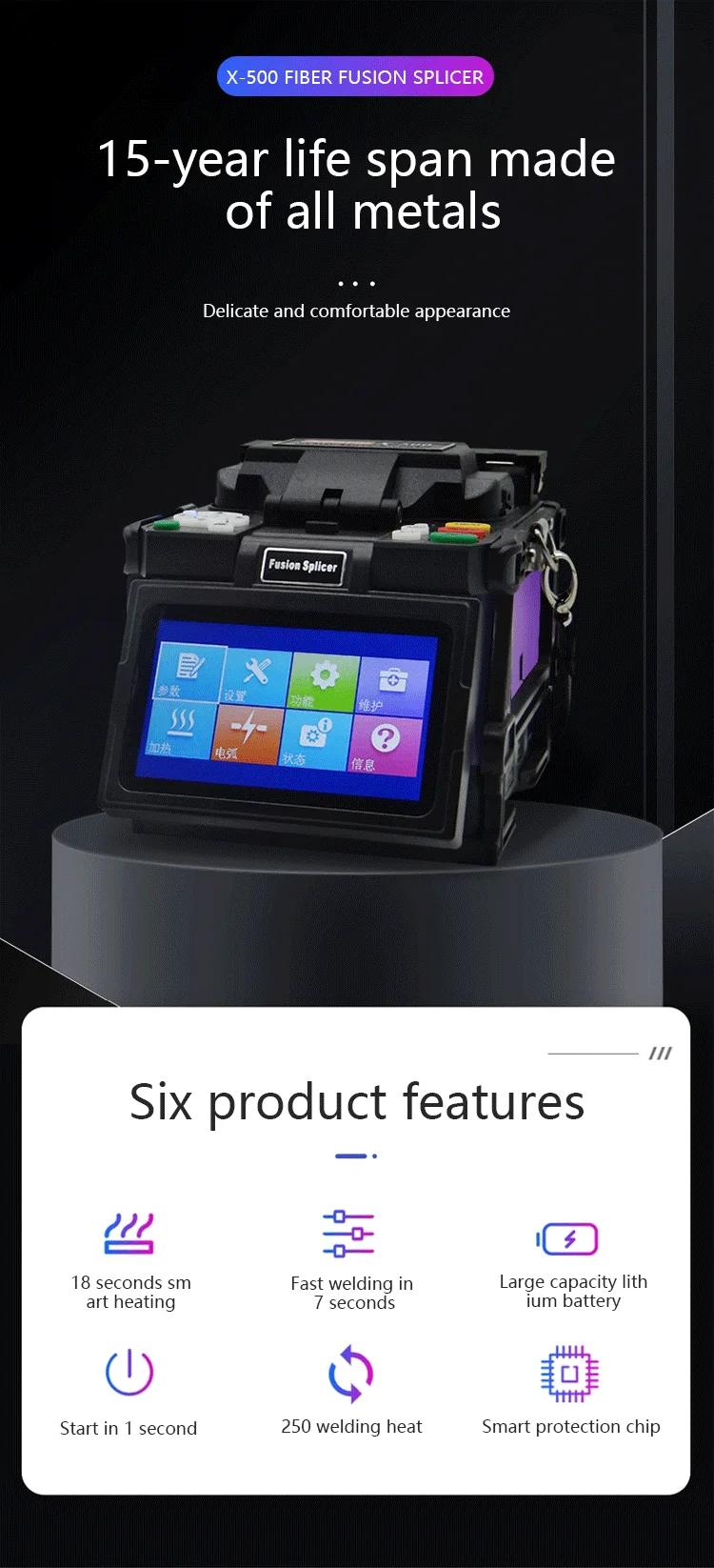

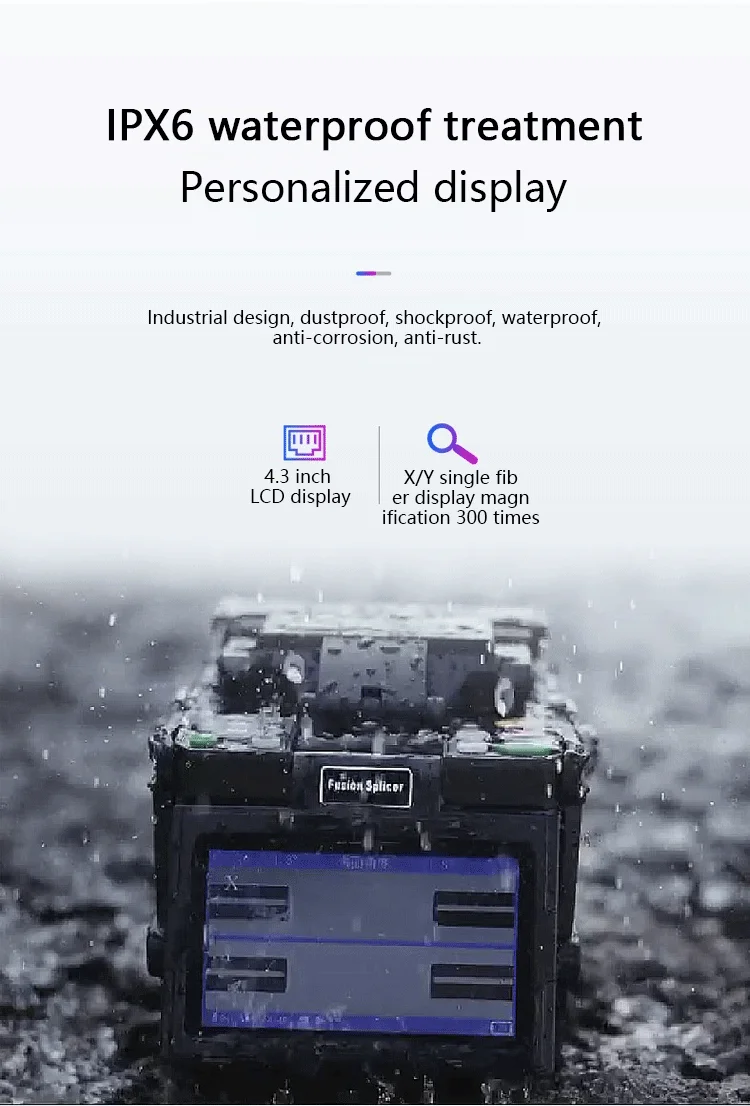

Viewing display:Dual high sensitivity camera, 4.3 inch 800*480 LCD Monitor
Data storage:4000 groups data records
Loss evaluation:Available
Tension test:1.8~2.25N
Interface:GUI menu interface, easy for operation

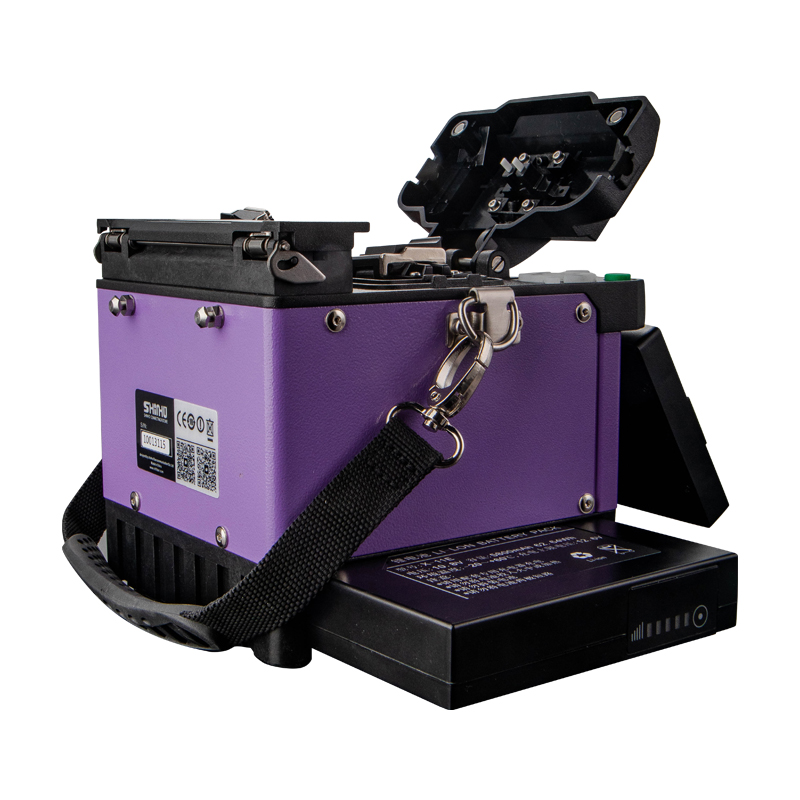

Battery capacity:5200mAh Li-battery, 250 cycles splicing and heating
Power supply:Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V
Electrode life:More than 4000 ARC discharges, easy to replace
Terminals:USB 2.0 port, for software upgrading, records exporting
Operating condition:Altitude:0-5000m,Humidity:0-95%,Temperature:-10℃~+50℃;Wind:max 15m/s
Dimension/Weight:149mm (L)*120mm (W)*127mm (H) /1.90kg (incuding battery)
FAQ
Q1. What is your company product?
A: Our main product ranges Fusion Splicer,SFP+ Modules,GEPON OLT, GEPON XPON ONU, and fiber optic accessories,like fast connectors,adapters,splitters,drop cable,patch cord…with good quality and factory direct price.
Q2.What is your payment terms?
A: T/T 30% as deposit, and 70% before delivery. We’ll show you the prepared photos of the products and packages before you pay the balance.
Q3. Can we get free samples?
A:Of course, please find our sales manager to get your free sample.
Q4. Can I customized the products?
A: some products are customized, any specification will be accepted. Please kindly tell our your request.
Q5. What is your terms of trade?
A: We offer EXW,FOB,CIF and CNF or as your request.
Q6. How long is the warranty?
We provide customers with 1 year warranty service, and our business for more than 1 year will provide 2 years warranty service.
Q7. Can I get a sample first?
A: Of course, you can get a sample first, I make sure you will reorder and be happy with our high quality goods.
Q8. What is your delivery time about the production?
A: Generally, it will take 3 to 5 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.Large quantity will delivery faster.
Q9. How can I contact you?
A: Send your Inquiry Details in the Below, Click “Send” Now……..don’t hesitate.
